Product benefits
Suitable luminaire for VIVARES and other DALI-2 Light Management Systems
Tool-free electrical connection due to push button connector
Through-wiring possible with included connector box
Energy savings thanks to high system efficacy: up to 130 lm/W
Good glare reduction (UGR < 19)
High color consistency with SDCM 3
Extended services such as energy monitoring and remote maintenance possible with DALI versions
External driver for extended flexibility and easy installation
Low flicker light thanks to special electronic control gear
Suitable for emergency lighting
5 years guarantee
Areas of application
Direct replacement for recessed luminaires with fluorescent lamps
Offices, conference rooms
Reception areas, foyers, corridors, elevators

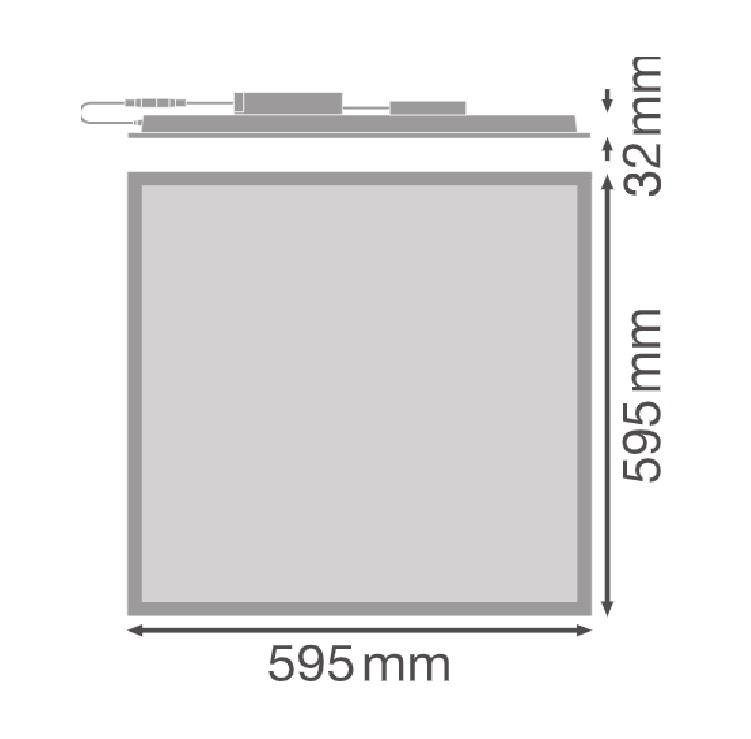

Suitable for recessed ceiling systems with grid size of 600 x 600 mm
Product features
IoT-ready luminaire with DALI-2 technology
Suitable for central battery emergency installations acc. to EN 60598-2-22
Push DIM function for dimming and switching directly on a pushbutton
Versions available with CRI 90
Extruded aluminum frame
Polystyrene diffuser
5-pole terminal block, cable cross section up to 5 x 2.5 mm²
Lifetime (L80/B10): 70,000 h (at 25 °C)
Equipment / Accessories
Accessories for several mounting options available
Connector box with 5-pole terminal included
Security rope for luminaire included
Security brackets preinstalled
External control gear included
Suitable for use with seperate Emergency Conversion Box
